CLUTCH ASSEMBLY – 11″
CLUTCH ASSEMBLY – 11″
£355.00 Excl. VAT
Part Number:
Part available in stock.
. . . but not available online, please contact us to order

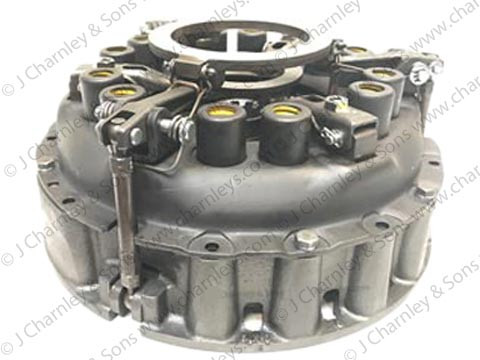

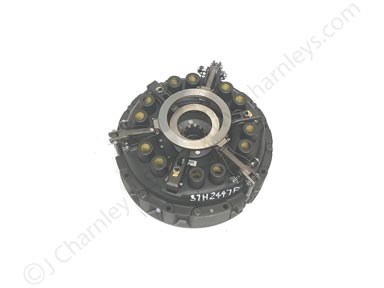

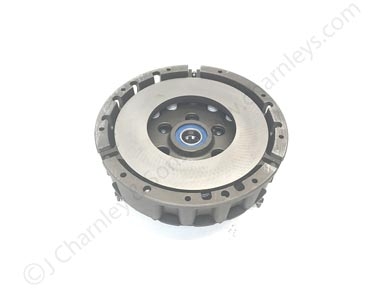

37H2447R Nuffield, Leyland and Marshall 11″ Clutch Cover.
Reconditioned Cover and Driven Plate assembly for 11″X11″ Borg & Beck/Leyland Clutch. This clutch was first introduced for the Nuffield 4/65 and has stronger 3/8” operating legs and turnbuckles on the main drive clutch.
It’s recommended when changing the current unit to replace the following items:
- 1 x 88G622: Flywheel bearing
- 3 x 37D417: Flywheel lock tab
- 1 x ATJ4713: Main Drive Plate
- 1 x NT6779: Main Drive Bearing
- 1 x NT6780: PTO Thrust Bearing
- 1 x NT7384: PTO Thrust Bearing Anti-Rotation Peg
- 2 x LBS908: Main Drive Thrust Pivot Bush
- 2 x ATJ5612: Main Drive Thrust Securing Pin
- 2 x ATJ5613: Main Drive Thrust Spring Clip
- 2 x ATJ7823: PTO Drive Clutch Lock Tab
- 8 x NT3770: Bellville Washer
- 3 x 18G498: Clutch Retaining Clip (To assist in removing your old clutch unit)
Please note: This is a reconditioned/exchange unit. In order that we can continue to supply these clutches we require your old unit in exchange. A surcharge is payable on ordering and then refunded on return of your old unit. Please contact us for terms and conditions.
See item No.4 in this illustration of the Nuffield, Leyland and Marshall Independant PTO Clutch.
Fitted to:
- Nuffield 3/45, 4/65
- Leyland 253, 245, 344, 384, 255, 270, 262, 272, 462, 472, 282, 482, 502, 602, 604, 702, 704
- Marshall 502, 602, 604, 702, 704
Alternative Number 37H2447
Weight | 35 kg |
---|---|
Dimensions | 45 × 45 × 25 cm |
OEM Number | 37H2447R |
---|---|
Country Of Origin | Uncategorised |
