DRIVEN FLANGE
DRIVEN FLANGE
£118.46 Excl. VAT
Part Number:

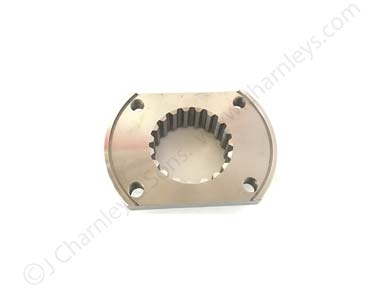

NTT109 / ATJ7822 Nuffield, Leyland and Marshall P.T.O. Driven Flange from clutch to gearbox.
When originally listed under part number ATJ7822 this flange used a 83H893 ‘O’ RING and it was just champered to accomodate the ‘o’ ring seal. It was later superseded to the current part number NTT109 in November 1981 (serial number 252990 onwards) and this new flange is machined out at the back to be sealed to the splines with AKU1076 ‘O’ RING.
See No.9 in this illustration of Gearbox Input Parts-Dual Clutch.
Fitted to:
- Nuffield 10/42, 10/60, 3/45, 4/65
- Leyland 253, 245, 344, 384, 255, 270, 262, 272, 462, 472, 282, 482, 502, 602, 604, 702, 704, 802, 804
- Leyland 285, 2100, 485, 4100
- Marshall 502, 602, 604, 702, 704, 802, 804
Weight | 0.623 kg |
---|
OEM Number | NTT109 |
---|---|
Country Of Origin |
