DUAL CLUTCH ASSY – 12″
DUAL CLUTCH ASSY – 12″
£405.00 Excl. VAT
Part Number:
Part available in stock.
. . . but not available online, please contact us to order

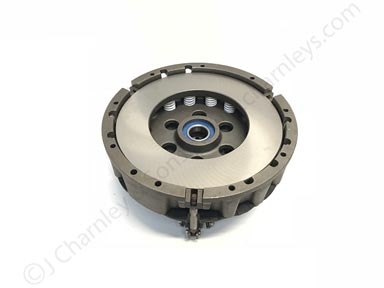

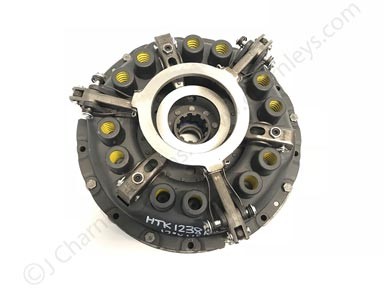

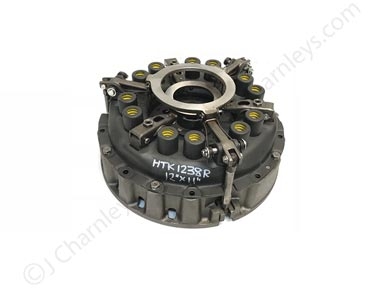

HTK1238R DUAL CLUTCH ASSY – 12″. Reconditioned clutch cover assembly for Leyland and Marshall tractors fitted with an 12″ x 11″ Borg & Beck clutch assembly.
It’s recommended when changing the current unit to replace the following items:
- 1 x 88G622: Flywheel bearing
- 3 x 37D417: Flywheel lock tab
- 1 x NTK1459: Main Drive Plate
- 1 x NT6779 / CTJ6255: Main Drive Bearing
- 1 x NT6780: PTO Thrust Bearing
- 1 x NT7384: PTO Thrust Bearing Anti-Rotation Peg
- 2 x LBS908: Main Drive Thrust Pivot Bush
- 2 x ATJ5612: Main Drive Thrust Securing Pin
- 2 x ATJ5613: Main Drive Thrust Spring Clip
- 2 x ATJ7823: PTO Drive Clutch Lock Tab
- 8 x NT3770: Bellville Washer
- 3 x 18G498: Clutch Retaining Clip (To assist in removing your old clutch unit)
Fitment notes:
- First fitted as standard by Marshall Tractors Ltd to the following higher horse power 4WD and Turbo engine Marshall tractors from serial number 101A onwards.
- Can also be retro fitted to the following Leyland tractors where a heavy duty clutch is required, for example in loader tractors with either an organic main drive 12″ plate (NTK1459) or in extreme conditions a ceramic main drive 12″ plate (DP1028).
Replaces part number: HTK1238
Fitted to tractors:
- Leyland 462, 472, 282, 482, 282, 482, 802, 804
- Marshall 604, 704, 802, 804, 904XL
Please note: This is a reconditioned/exchange part. In order that we can continue to supply these clutches we require your old unit in exchange. A surcharge is payable on ordering and then refunded on return of your old unit. Please contact us for terms and conditions.
| Weight | 37 kg |
|---|---|
| Dimensions | 45 × 45 × 25 cm |
| OEM Number | HTK1238R |
|---|---|
| Country Of Origin | United Kingdom |
