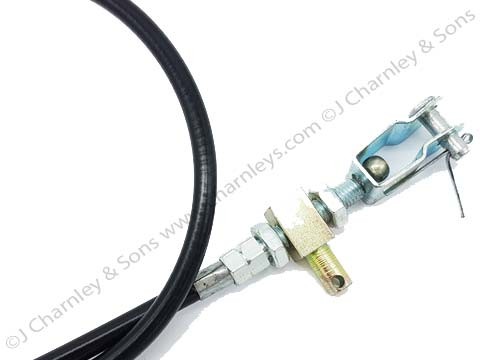

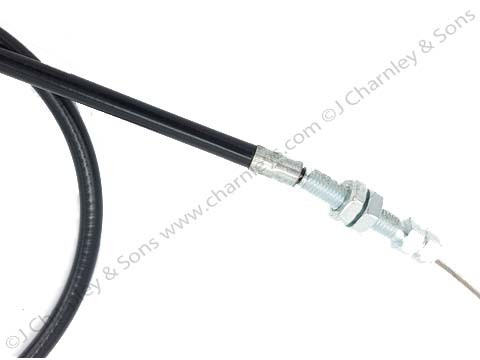

CTJ5500 THROTTLE CABLE – DAP (565mm). Throttle cable for tractors fitted with a C.A.V. DPA rotary injection pump.

This 565 mm long throttle cable was first fitted to Leyland 262 and Leyland 272 QM-Cab tractors from serial number 211061.  Then fitted to Leyland 462, 472, 282 and 482 tractors up to serial number unknown.  So measure the length of your current outer cable.

The outer length of this cable is 565 mm, for the later cable measuring 600 mm see part number CTJ8220 CABLE.

See item 33 in the illustration.

Fitted to QM-Cab tractors:

• Leyland 262, 272
• Leyland 462, 472, 282, 482
