PISTON RING SET – +0.20
PISTON RING SET – +0.20
£24.00 Excl. VAT
Part Number:
BHM1169-20 / 8G2503-20 RING SET.

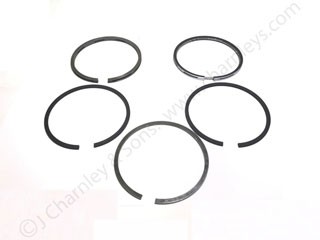

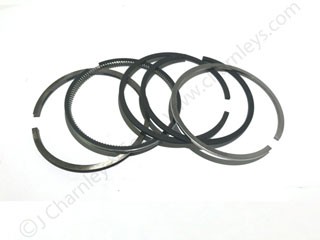

Piston Rings Set at +.020″ Oversize.
Also available at +.050″ Oversize.
Fitted to:
- Leyland 154
- Nuffield 4/25
- BMC 1500cc diesel engine
- Thornycroft 90 Boat/Marine engine
IMPORTANT NOTE
Ring gaps should always be checked prior to fitting to the piston as follows:
PISTON RING GAP FITTED IN THE BORE
No. 1 compression ring – 0.012 inch to 0.020 inch (0.30 mm to 0.51 mm)
No. 2 and No. 3 compression rings – 0.008 inch to 0.013 inch (0.20 mm to 0.33 mm)
No. 4 and No. 5 oil control rings – 0.008 inch to 0.013 inch (0.20 mm to 0.33 mm)
Note: Big end bolts torque – 35 lbs/ft (4.85 kg/m)
Weight | 0.066 kg |
---|
OEM Number | BHM1169-20 |
---|---|
Country Of Origin | Uncategorised |
