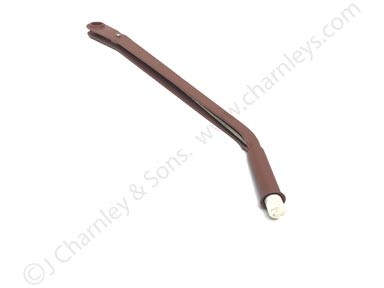

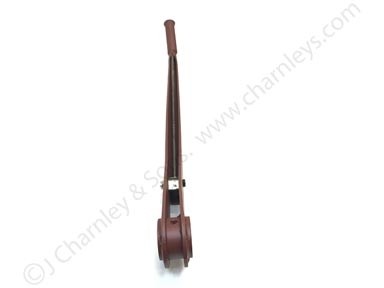

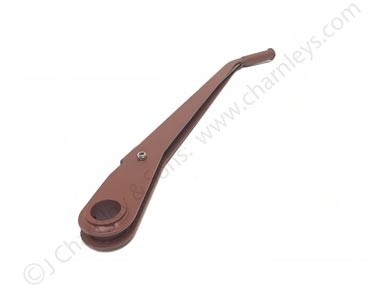

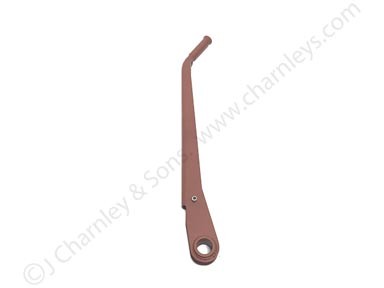

ATJ5100 ASSEMBLY.

Handclutch and Handbrake Assembly to Nuffield 3/45 and 4/65, Leyland 344 and 384 up to serial number 139668.

On later tractors or from serial number 139669 onwards, it is used for the handbrake only and the clutch operation is replaced with ATJ5214 HANDCLUTCH LEVER

Made up from the following parts;

• 27H7626 (BUTTON)
• 27H7627 (WASHER)
• 27H9409 (PAWL)
• 27H9410 (SPRING)
• 27H9411 (ROD)
• 27H7640 (BOLT)
• 27H7641 (NUT)

All parts also available separately.

Fitted to:

• Nuffield 3/45, 4/65 (handbrake and handclutch)
• Leyland Middleweight 253, 245, 344, 384 (handbrake and handclutch up to serial No. 139668)
• Leyland 255, 270, 262, 272 (handbrake)
• Leyland Heavyweight 285, 2100, 485, 4100 (handbrake)
