DYNAMO PULLEY – C39 / C40
DYNAMO PULLEY – C39 / C40
Price range: £9.50 through £55.50 Excl. VAT
Part Number:

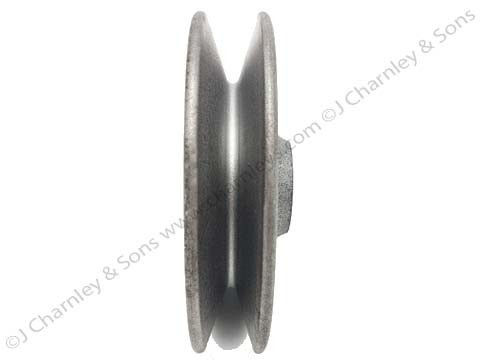

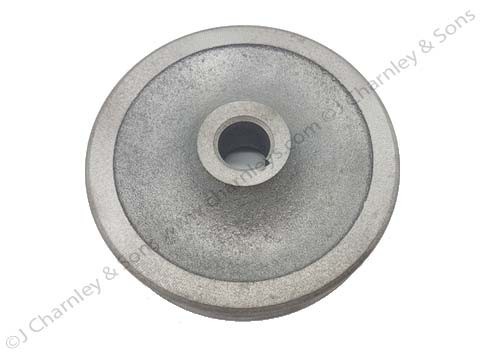

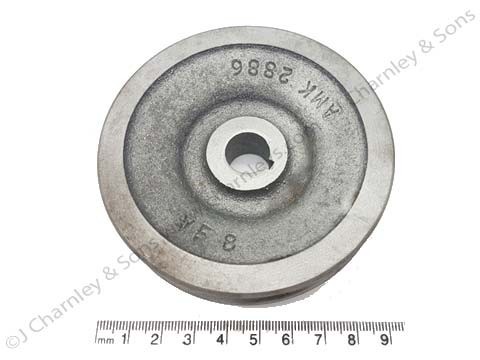

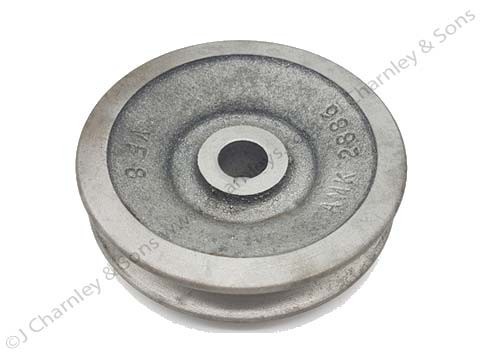

AMK2886 PULLEY. Cast iron dynamo pulley fitted to Lucas type C39 and type C40 dynamos.
Specifications:
Pulley diameter: 3 9/16” (91 mm)
Keyed shaft diameter: 0.590″ (15 mm)
Pulley type: “A” section “V” pulley
Use this pulley with 17D11 FAN for vented dynamos.

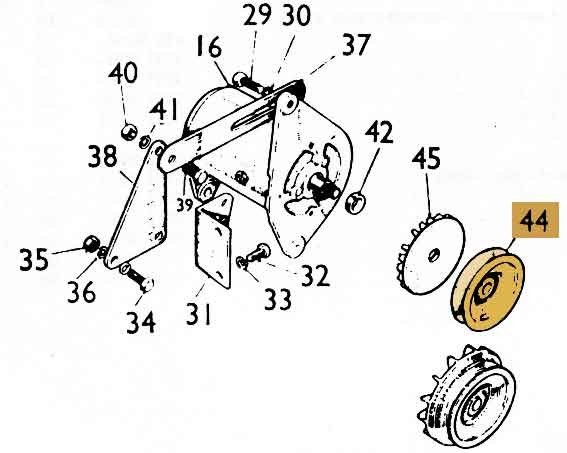

See item 44 in the illustration.
Fitted to tractors:
- Nuffield Universal Three (3DL), Nuffield Universal Four (4DM)
- Nuffield – 342, 460, 10/42, 10/60, 3/45, 4/65
- Leyland 253, 245, 344, 384, 255, 270
| Weight | 0.408 kg |
|---|---|
| Part Type |
| OEM Number | |
|---|---|
| Country Of Origin | Uncategorised |
Nuffield Tractors:
10/42 - 10/603/45 - 4/65342 - 460Universal Three 3DL - Universal Four 4DM
Leyland Tractors:
Middleweight Range:
253 - 245255 - 270344 - 384
