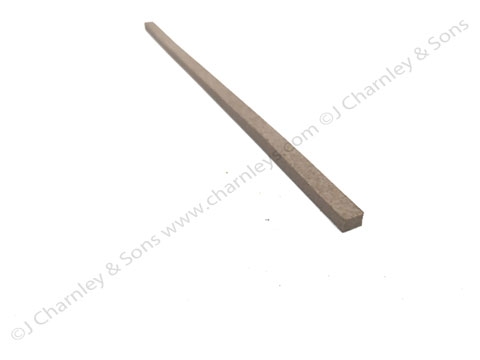

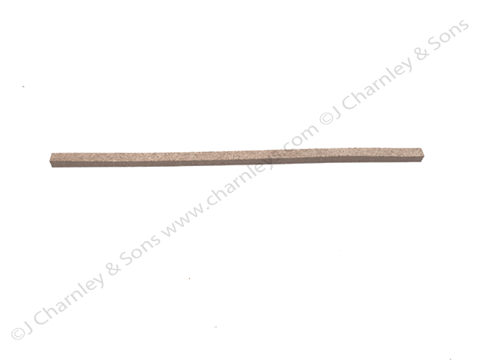

AHM2123 GASKET.  Rear sump gasket.

Long rear cork sump gasket for Leyland 245, Leyland 502 and Marshall 502 tractors.with lip type rear crankshaft seal.

Length 10-¹/₄” inch (251mm).

For tractors with Perkins AD3.152 3 cylinder diesel engines from engine No.152U 79698DL onwards.

Note:  If this gasket fails oil will leak into the clutch housing.

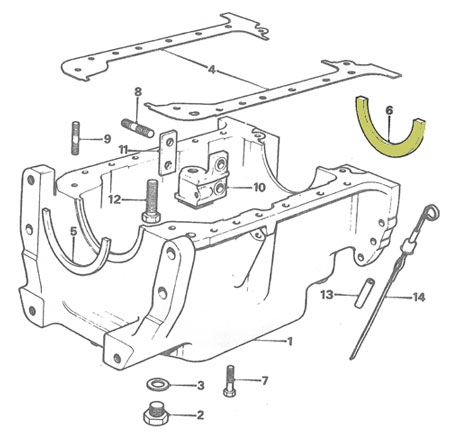

See item number 6 in the illustration.

Fitted to tractors:

• Leyland: 245, 502
• Marshall: 502

Fitted to engines:

• Perkins AD3.152 3 cylinder diesel engines
  (Serial No. 152U79698DL engines with lip type rear crankshaft seal).
