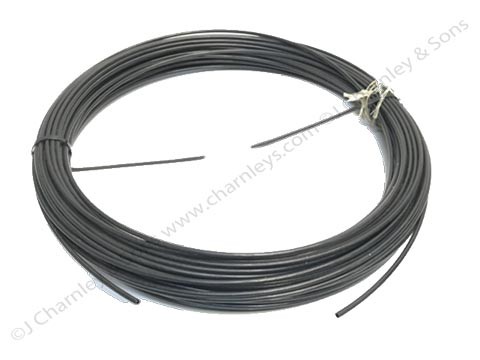

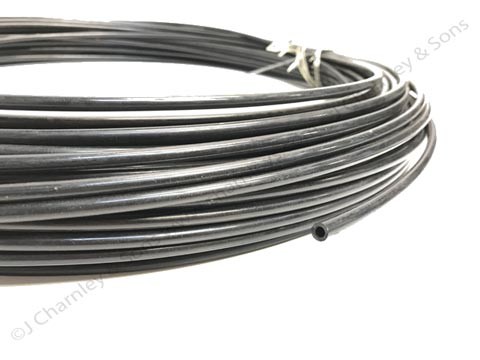

97H2772M FUEL PIPE – 1/4″.  Nylon fuel Return Pipe or “Spill off” Pipe. 1/4 inch diameter, sold by the metre.

This pipe runs from the top of the fuel filter, to the injector spill offs, and returns surplus fuel to the fuel tank.

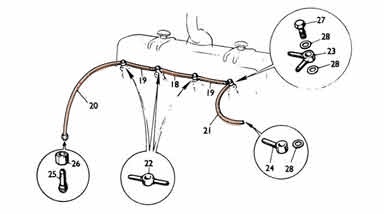

See parts numbered 18, 19, 20, 21 in the illustration.

Fitted to engines:

BMC 950, 1500, 1800, 4 cylinder
BMC 2.6 litre, BMC 2.8 litre, 3 cylinder
BMC 5.1 litre, BMC 5.7 litre, 6 cylinder
Leyland 4/98, Leyland 6/98

Replaces part number: 86K156

Fitted to tractors:

• Nuffield Universal Three (3DL), Nuffield Universal Four (4DM)
• Nuffield 342, 460, 10/42, 10/60, 3/45, 4/65
• BMC Mini
• Nuffield 4/25
• Leyland 154, 184, 235, 302
• Marshall 302
• Leyland 253, 245, 344, 384, 255, 270, 262, 272, 462, 472, 282, 482
• Leyland 502, 602, 604, 702, 704, 802, 804
• Leyland 285, 2100, 485, 4100
• Marshall 502, 602, 604, 702, 704, 802, 804, 904XL
• Marshall 100, 115, 125, 145

Nuffield Engine – Nuffield Fuel System – BMC Engine – BMC Fuel System – Leyland Engine – Leyland Fuel System – Marshall Engine – Marshall Fuel System
