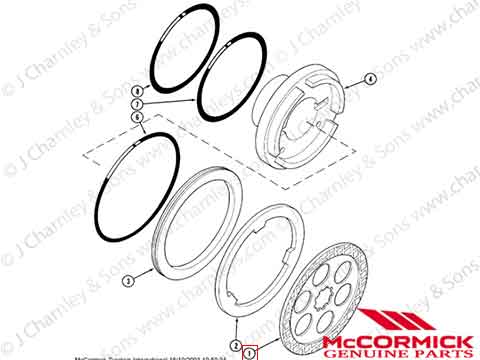

715366A1 BRAKE DISC. Genuine McCormick rear brake disc for McCormick and Case IH C and CX series tractors.

Specification:

• Outer diameter: 259.2mm
• Inner diameter: 51.23mm
• Thickness: 7.6mm
• No of teeth: 15

Replaces part number: 114622C2

Fitted to tractors:

• International 54 Series (1971 – 1973)
  454
• International 74 Series (1970 – 1977)
  474, 574, 674
• International / Case IH 84 Series (1978 – 1984)
  484, 584, 684, 784, 884
• International / Case IH 85 Series (1981 – 1990)
  385, 485, 485XL, 585, 585XL, 685, 685XL, 785, 785XL, 885, 885XL
• Case IH 95 Series (1991 – 1994)
  395, 495, 495XL, 595, 595XL, 695, 695XL, 795, 795XL, 895, 895XL, 995, 995XL
• Case IH 3200 Series (1994 – 1998)
  3210, 3220, 3230
• Case IH 4200 Series (1994 – 1998)
  4210, 4220, 4230, 4240
• Case IH C Series (1998 – 2002)
  C50, C60, C70, C80, C90
• Case IH CX Series (1998 – 2002)
  CX50, CX60, CX70, CX80, CX90, CX100
• McCormick C Series
  C50, C60, C70, C80, C90, C100
• McCormick CX Series Tier 1/2 (2001 – 2007)
  CX50, CX60, CX70, CX75, CX80, CX85, CX90, CX95, CX100, CX105
