6510112M91 4WD SHAFT ASSY. Genuine McCormick 4 wheel drive front axle prop shaft assembly for McCormick MTX and XTX series tractors.

Dimensions:

• Total length: 983mm
• Shaft length (Between flanges): 825mm

Shaft assembly includes following items:

• 1x 704483A1 SHAFT
• 1x 254594A1 YOKE

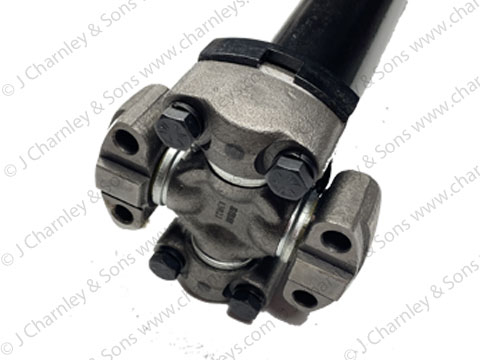

• 2x 229108A1 UNIVERSAL JOINT
• 12x 827-10040 BOLT

NOTE: Non-genuine does not include 254594A1 Yoke alternative.

Replaces part number: 704484A1

Fitted to tractors:

• McCormick MTX Series Tier 2/3 (2002 – 2015)
  MTX120, MTX135, MTX145, MTX150, MTX165, MTX185
• McCormick XTX Tier 2 Series (2005 – 2007)
  XTX185, XTX200, XTX215
