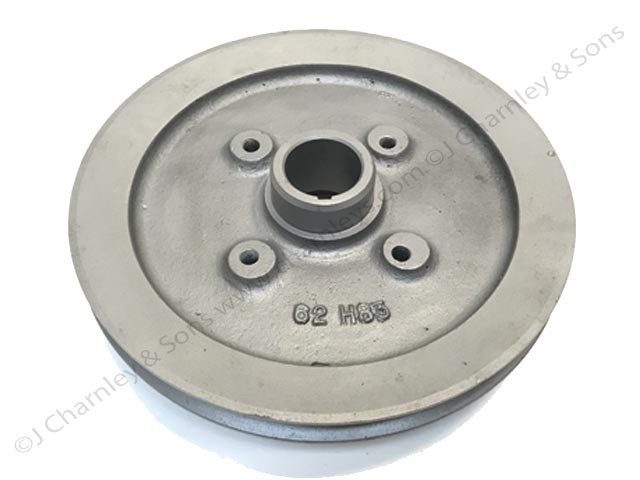

62H83/BTJ3315 PULLEY.  Crankshaft Pulley for dynamo drive and hydraulic pump drive.

Fitted to Leyland Lightweight tractors with the BMC 1622cc 4 cylinder petrol/gas engines from engine number 2548 onwards and BMC 1500cc 4 cylinder diesel engines from engine number 4655 onwards.

Use with 13H9384 FANBELT.

Can be used in place of BTJ3315 Double Pulley Dynamo together with 13H9384 Fanbelt.

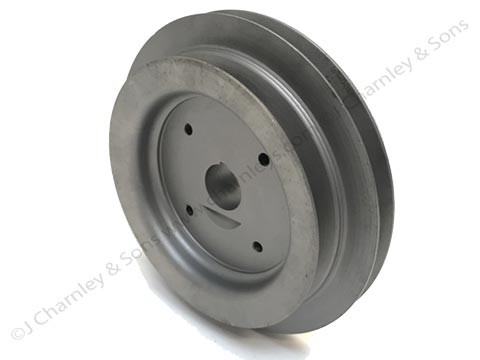

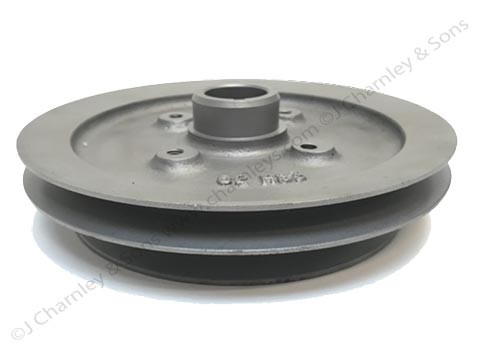

This is a double pulley with:

1. 6 ¹/₂” inch (165mm) hydraulic pump drive (‘b’ profile) used with BTJ6280 DRIVE BELT.
2. 7 ¹/₂” inch (190mm) dynamo drive (‘a’ profile) used with 13H9384 FANBELT.

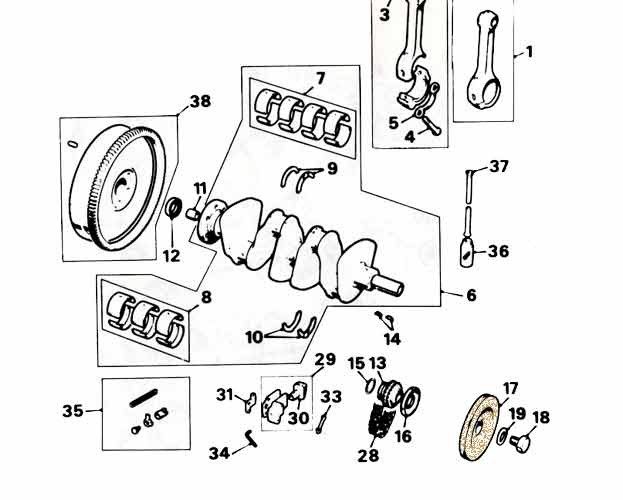

See item number 17 in the illustration.

Fitted to tractors:

• Nuffield 4/25
• Leyland 154

(For the alternator pulley see part number JAM163 PULLEY)

Nuffield 4/25 Engine part – Leyland 154 Engine part – BMC 1500 Engine part – BMC 1622 Engine part
