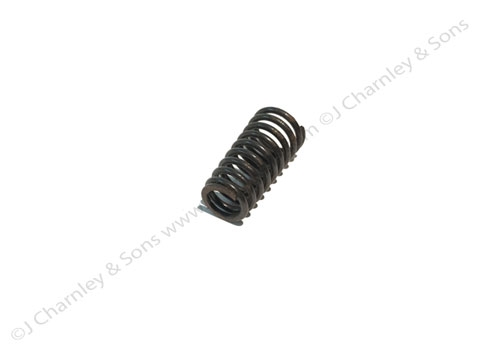

37H8272 SPRING.. Conical Spring for Leyland Hydraulic Lift Cylinder Non-return Valve.

First used on Leyland 270 (S/N 181846)

Note: Holds in place the 37H8273 Poppet Valve

Dimensions:

• Free Length: 1-¹/₈” (28mm)
• Large diameter: 9/₁₆” (14.2mm)
• Small diameter_: ⁷/16” (11.1mm)

Fitted into:

• CTJ4460 Valve Assembly – Please click here and see item No. 20 in the illustration
• CTJ7169 Filter Assembly –  Please click here and see item No. 20 in the illustration

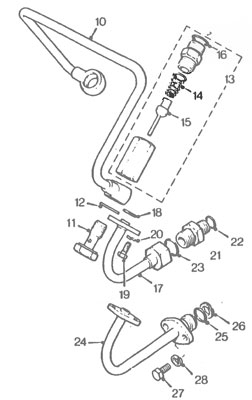

• HTJ38 Non-Return Valve – See item number 13 in the illustration

See item number 13 & 14 in the illustration.

Fitted to:

• Leyland: 255, 270, 262, 272, 462, 472, 282, 482, 502
• Leyland: 602, 604, 702, 704, 802, 804
• Leyland: 285, 2100, 485, 4100
• Marshall: 502, 602, 604, 702, 704, 802, 804
• Marshall: 902XL, 904XL, 752XL, 754XL
